Nu:Tekt NTS-1 - Digital Synthesizer Kit
NTS-1 packs a powerful synth and multi-effects engine into a compact USB powered form that you get to build yourself! The engine also lets you load custom oscillators and effects from Korg's logue SDK, making it compatible with Prologue and Minilogue XD.
Extend your warranty for free when buying direct from Korg UK.
Free 30-day returns available on all products. Find out more.
Build it, tweak it, connect it; a world of synthesis at your fingertips!
Korg is always creating new ways to experience hands-on, fun music-making.
Now, you can too.
The Nu:Tekt NTS-1 digital KIT is a unique, flexible, and easy DIY synthesizer that you can easily assemble yourself (tool included), without any soldering.
The first of its kind from Korg’s DIY-focused Nu:Tekt brand, NTS-1 packs a powerful synth and multi-effects engine into a compact and highly portable form factor. Its DIY nature means it’s also very customisable. Explore the possibilities!
NTS-1 is also completely compatible with the logue-SDK*, making it possible to create custom oscillators and effects or upload any of the content available for Minilogue XD and prologue.
* When using 3rd party plugins on the NTS-1 please consult with the developer first as the content may sound differently than with Minilogue XD or prologue based on polyphony.
A wide range of sonic possibilities
Belying its size, the Nu:Tekt NTS-1 features a digital oscillator inspired by the MULTI engine as found on the acclaimed prologue and Minilogue XD, along with an extremely capable arpeggiator including multiple ranges, scales, and modes, plus dedicated spatial, modulation, and delay sections, each with multiple settings to explore.
With a single monophonic digital oscillator, one multimode filter, on EG, three LFOs, three stereo effect processors, and full arpeggiator, the NTS-1 is a very powerful, flexible, fun-to-explore synth.
The main oscillator can produce Sawtooth, Triangle, Square and VPM waveforms, and can load custom oscillators created from Korg’s logue SDK, which means it’s compatible with content created for prologue and Minilogue XD. These waveforms can be easily re-shaped and adjusted just by simply turning a couple of knobs.
A wide selection of filters (Low pass 2/4-pole, High pass 2/4-pole, Band pass 2/4-pole and OPEN mode, all with resonance) give you serious control over the overall tone of the oscillator.
The three onboard effects units are inspired by those on Korg’s Minilogue XD, which itself took onboard effects to a whole new level. Numerous reverbs, modulation effects, and delays are available to blend and edit at will, to really finish out your sound creations.
NTS-1 also offers a fun and practical arpeggiator with several patterns available. Scales and numerous note orders including a Random mode are also available to create new and original ideas on the fly. The pattern length can be adjusted (from 1 to 24 steps) and, when synced externally, the step duration can also be adjusted (16th to 64th notes)
Thanks to its ribbon controller, simple interface and display, the NTS-1 can be played and enjoyed very intuitively. Deeper parameter changes are also possible with several combinations of buttons / knobs, furthering the possibilities. Don’t let its size fool you; NTS-1 goes deep but keeps it all easily accessible.
Customise the experience
The fun isn’t over after you finish building the NTS-1. The screws on the side panels are long enough to let you easily attach custom side panels.

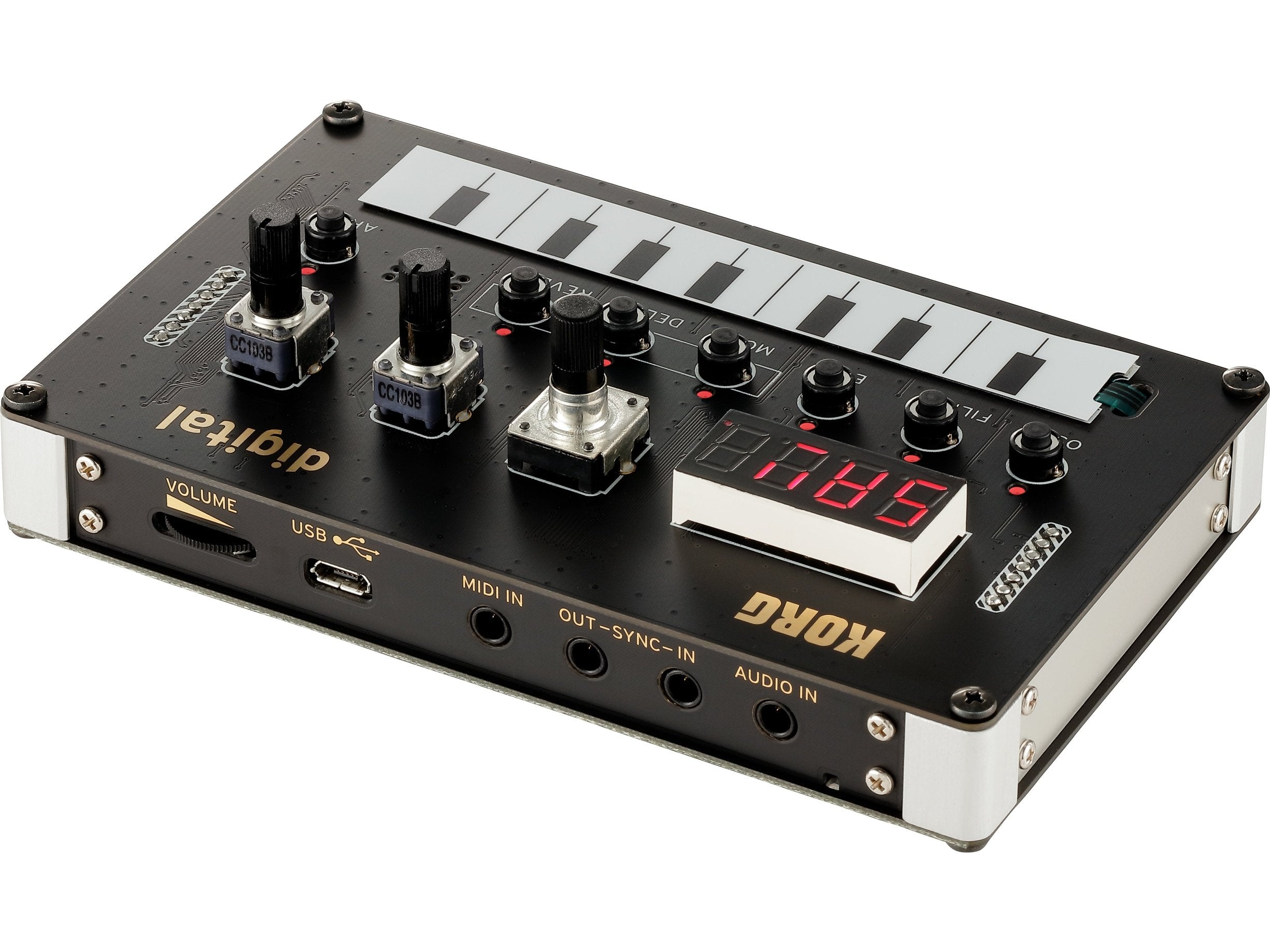

Get creative and use the NTS-1 in a wide variety of setups. Equipped with AUDIO IN, SYNC IN, SYNC OUT and MIDI IN connectors, the NTS-1 can easily be used in combination with other hardware and software.
You can control it using external MIDI controllers and sequencers, use it to modify and audio signal with its powerful digital effects, or even sync it to other hardware and jam along!
It’s also USB micro-B powered so you can plug it directly to a portable battery and take it anywhere with you! You can also connect to your computer’s USB port or directly to the power supply using a standard USB power plug.
Free bundle of music software
The NTS-1 comes with a diverse variety of music software from Izotope including “Ozone Elements” which lets you not only create songs but also master them using AI, “Skoove” which will help you improve your keyboard playing skills, “Reason Lite” DAW software, as well as software synths from Korg and other brands.
In other words, the moment you get your hands on this synthesizer you'll have a variety of tools to help you take your music to the next level.
- Ribbon keyboard
- Sound Generation
- 1 Digital Oscillator, 1 Multimode filter, 1 EG, 3 LFO
- MOD (CHORUS, ENSEMBLE, PHASER, FLANGER), DELAY, REVERB
- Input/output jacks
- Headphone jack (3.5mm stereo mini phone jack), AUDIO IN jack (3.5mm stereo mini-phone jack), SYNC IN jack (3.5 mm stereo mini-phone jack, 20V maximum input level), SYNC OUT jack (3.5 mm stereo mini-phone jack, 5V output level), MIDI IN connector (3.5 mm stereo mini-phone jack) connector, USB port (micro B type)
- Power supply
- USB bus power mode, Current consumption: 500 mA or less
- Dimensions (W x D x H)
- 129 mm x 78 mm x 39 mm / 5.08” x 3.07” x 1.54”
- 124 g / 4.37 oz
- Included items
- USB cable, Owner’s manual, Screwdriver
